Laboratory Animal and Comparative Medicine
• XXXX XXXX •
LIU Yuanyuan1,2(), XIN Wenshui2, CHAO Zhe2, CAO Zongxi1,2, CAI Yifei3, LI Qiang1,2, LI Lingwei1,2, LIU Guangliang1,2,3(
)(
)
Received:
2024-09-18
Revised:
2024-12-15
Contact:
LIU Guangliang
CLC Number:
LIU Yuanyuan,XIN Wenshui,CHAO Zhe,et al. Identification and Analysis of MHC Ⅱ Genes in Wuzhishan Pig[J]. Laboratory Animal and Comparative Medicine. DOI: 10.12300/j.issn.1674-5817.2024.135.
Add to citation manager EndNote|Ris|BibTeX
URL: https://www.slarc.org.cn/dwyx/EN/10.12300/j.issn.1674-5817.2024.135
引物名称 Primer name | 引物序列(5' to 3') Primer sequence(5' to 3') | 扩增片段长度/bp Amplified fragment /bp | 退火温度/℃ Annealing temperature/℃ |
---|---|---|---|
SLA-DRA-F | GCTTGTATTGCTGTCCATCC | 851 | 55 |
SLA-DRA-R | CAAAGTCCATTCCCTGCAAG | ||
SLA-DQA-F | ATGGTCCCAGGCCGAGTT | 768 | 55 |
SLA-DQA-R | TCACAAGGACCCTTGGTGTC | ||
SLA-DQB-F | CCATTACTTCTTCGTTTGCCC | 995 bp | 55 |
SLA-DQB-R | GAAGAAGCTTCACAGCCAGAG | ||
SLA-DRB-F | CACACTGTCCTCTCCTGTTC | 886 bp | 58 |
SLA-DRB-R | CTCATGCTGTGAAGACGCTG | ||
SLA-DOB-F | CCTCATTTTCTTTTTCCCCCTCC | 926 bp | 55 |
SLA-DOB-R | GGAATCATCCAGAACATCGACC | ||
SLA-DMB-F | CCGCTCAGTGTTTGGAGAT | 967 bp | 55 |
SLA-DMB-R | CCATACGAGACCAAATTGCC | ||
SLA-DMA-F | GGACCTGGGTTAGCTAGTTAG | 1 028 | 55 |
SLA-DMA-R | ACATGGCAGTGATGTCGTAGG | ||
SLA-DOA-F | GGTTAAAACACCAGAGGGCC | 807 | 55 |
SLA-DOA-R | GTCTCTCTCACATCCCAGCC |
Table 1 The information of primers used for PCR amplification of major histocompatibility complex
引物名称 Primer name | 引物序列(5' to 3') Primer sequence(5' to 3') | 扩增片段长度/bp Amplified fragment /bp | 退火温度/℃ Annealing temperature/℃ |
---|---|---|---|
SLA-DRA-F | GCTTGTATTGCTGTCCATCC | 851 | 55 |
SLA-DRA-R | CAAAGTCCATTCCCTGCAAG | ||
SLA-DQA-F | ATGGTCCCAGGCCGAGTT | 768 | 55 |
SLA-DQA-R | TCACAAGGACCCTTGGTGTC | ||
SLA-DQB-F | CCATTACTTCTTCGTTTGCCC | 995 bp | 55 |
SLA-DQB-R | GAAGAAGCTTCACAGCCAGAG | ||
SLA-DRB-F | CACACTGTCCTCTCCTGTTC | 886 bp | 58 |
SLA-DRB-R | CTCATGCTGTGAAGACGCTG | ||
SLA-DOB-F | CCTCATTTTCTTTTTCCCCCTCC | 926 bp | 55 |
SLA-DOB-R | GGAATCATCCAGAACATCGACC | ||
SLA-DMB-F | CCGCTCAGTGTTTGGAGAT | 967 bp | 55 |
SLA-DMB-R | CCATACGAGACCAAATTGCC | ||
SLA-DMA-F | GGACCTGGGTTAGCTAGTTAG | 1 028 | 55 |
SLA-DMA-R | ACATGGCAGTGATGTCGTAGG | ||
SLA-DOA-F | GGTTAAAACACCAGAGGGCC | 807 | 55 |
SLA-DOA-R | GTCTCTCTCACATCCCAGCC |

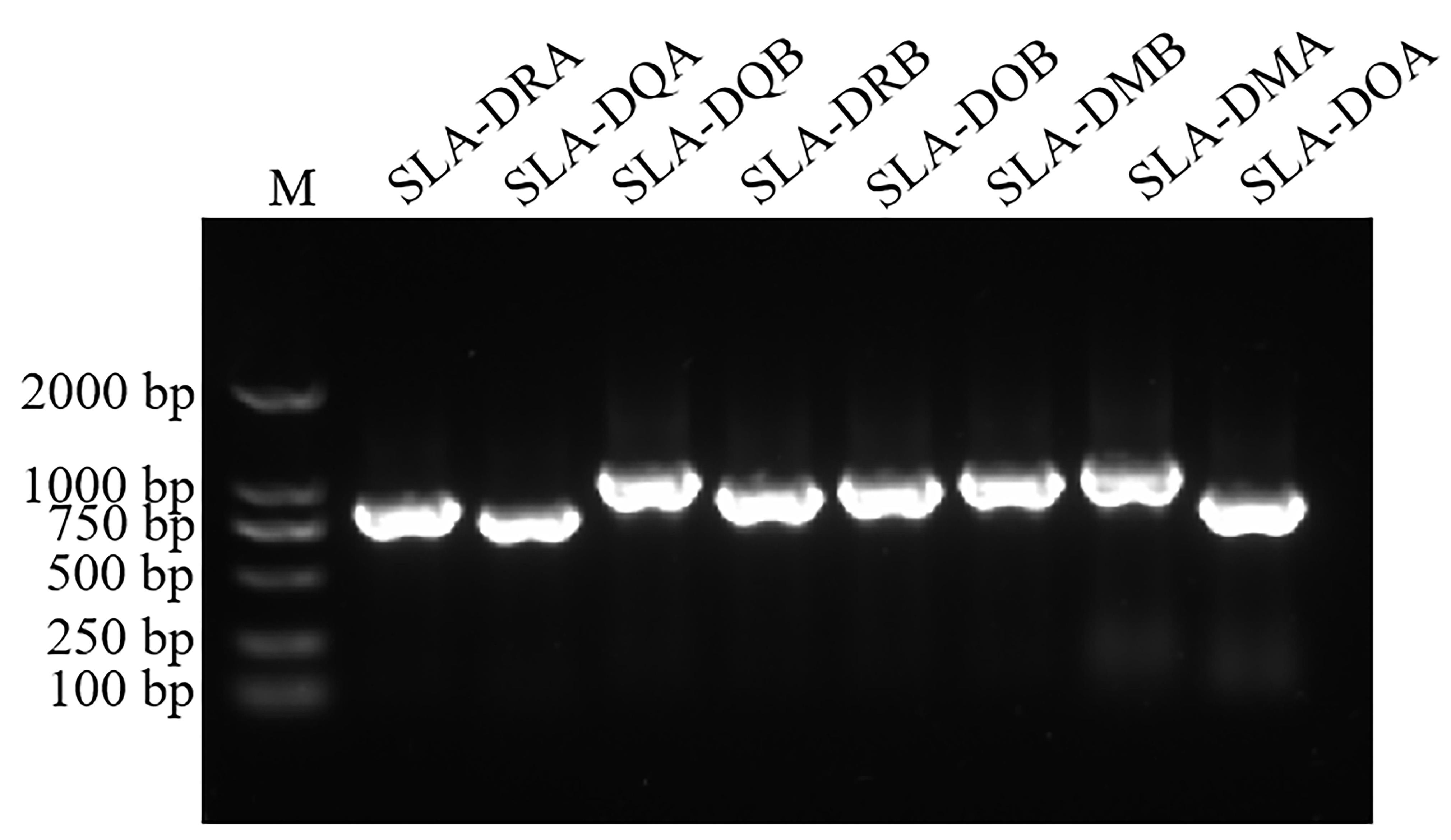

Figure 1 PCR results of MHC Ⅱ genes in the spleen tissues of Wuzhishan pigNote:SLA, swine leukocyte antigen, also named as major histocompatibility complex. M, DNA marker 2000.
基因ID Gene ID | 染色体定位 Chromosome mapping | 氨基酸长度/aa Amino acid length/aa | 相对分子质量,×103 Molecular weight, ×103 | 等电点 Isoelectric point | 亲水性平均系数 Grand average of hydropathicity |
---|---|---|---|---|---|
SLA-DRA | Chr07 | 252 | 28.4 | 5.03 | 0.029 |
SLA-DQA | Chr07 | 255 | 28.2 | 5.53 | 0.007 |
SLA-DQB | Chr07 | 261 | 29.5 | 6.97 | -0.222 |
SLA-DRB | Chr07 | 266 | 30.0 | 8.59 | -0.135 |
SLA-DOB | Chr07 | 264 | 29.8 | 5.32 | 0.024 |
SLA-DMB | Chr07 | 272 | 29.8 | 5.69 | 0.027 |
SLA-DMA | Chr07 | 260 | 28.9 | 4.69 | 0.152 |
SLA-DOA | Chr07 | 250 | 27.7 | 6.18 | 0.016 |
Table 2 The list of MHC Ⅱ proteins analysis of physical and chemical properties in Wuzhishan pig
基因ID Gene ID | 染色体定位 Chromosome mapping | 氨基酸长度/aa Amino acid length/aa | 相对分子质量,×103 Molecular weight, ×103 | 等电点 Isoelectric point | 亲水性平均系数 Grand average of hydropathicity |
---|---|---|---|---|---|
SLA-DRA | Chr07 | 252 | 28.4 | 5.03 | 0.029 |
SLA-DQA | Chr07 | 255 | 28.2 | 5.53 | 0.007 |
SLA-DQB | Chr07 | 261 | 29.5 | 6.97 | -0.222 |
SLA-DRB | Chr07 | 266 | 30.0 | 8.59 | -0.135 |
SLA-DOB | Chr07 | 264 | 29.8 | 5.32 | 0.024 |
SLA-DMB | Chr07 | 272 | 29.8 | 5.69 | 0.027 |
SLA-DMA | Chr07 | 260 | 28.9 | 4.69 | 0.152 |
SLA-DOA | Chr07 | 250 | 27.7 | 6.18 | 0.016 |
Figure 3 Conserved motif and conserved domain analysis of MHC Ⅱ proteins in Wuzhishan pigNote:The different colored boxes represent different conserved motifs or conserved domains; The horizontal coordinate represents the amino acid length of MHC class Ⅱ molecules.
Figure 4 Distribution of MHC Ⅱ genes on chromosome 7 of Wuzhishan pigs(A)and Collinearity analysis of MHC Ⅱ genes between Wuzhishan pigs, Homo sapiens and Sus scrofa(B)Note:Homo sapiens, the human genome assembly GRCh38.p14; Sus scrofa, the swine genome assembly Sscrofa11.1; Genes of the MHCⅡ class with collinearity are shown as blue lines, while other genes with collinearity are represented by gray lines.
1 | SWINDLE M M, MAKIN A, HERRON A J, et al. Swine as models in biomedical research and toxicology testing[J]. Vet Pathol, 2012, 49(2):344-356. DOI:10.1177/0300985811402846 . |
2 | 兰宗宝, 王修文, 许惠艳. 猪器官异种移植研究进展[J]. 广西农业科学, 2008, 39(3):380-384. DOI: 10.3969/j.issn.2095-1191.2008.03.030 . |
LAN Z B, WANG X W, XU H Y. Progress of porcine organs xenotransplantation[J]. Guangxi Agric Sci, 2008, 39(3):380-384. DOI: 10.3969/j.issn.2095-1191.2008.03.030 . | |
3 | CARRIER A N, VERMA A, MOHIUDDIN M, et al. Xenotransplantation: a new era[J]. Front Immunol, 2022, 13: 900594. DOI:10.3389/fimmu.2022.900594 . |
4 | PROSSER A, HUANG W H, LIU L, et al. Dynamic changes to tissue-resident immunity after MHC-matched and MHC-mismatched solid organ transplantation[J]. Cell Rep, 2021, 35(7):109141. DOI:10.1016/j.celrep.2021.109141 . |
5 | 冯书堂, 戴一凡, 章金刚, 等. 五指山小型猪近交系异种移植产业化研发进展[J]. 器官移植, 2018, 9(6):469-473. DOI: 10.3969/j.issn.1674-7445.2018.06.014 . |
FENG S T, DAI Y F, ZHANG J G, et al. The progress of xenograft industrialization on Wuzhishan miniature pig inbred line[J]. Organ Transplant, 2018, 9(6):469-473. DOI: 10.3969/j.issn.1674-7445.2018.06.014 . | |
6 | 晁哲, 李娇伦, 秦烨, 等. 五指山猪SLA-DQA和SLA-DQB基因SNP检测及生物信息学分析[J]. 养猪, 2017(6):57-60. DOI: 10.13257/j.cnki.21-1104/s.2017.06.018 . |
CHAO Z, LI J L, QIN Y, et al. Detection of single nucleotide polymorphism and bioinformatics analysis of SLA-DQA and SLA-DQB genes in Wuzhishan pig[J]. Swine Prod, 2017(6):57-60. DOI: 10.13257/j.cnki.21-1104/s.2017.06.018 . | |
7 | NIU M M, LIU Y Q, XIANG L, et al. Long-term case study of a Wuzhishan miniature pig with diabetes[J]. Animal Model Exp Med, 2020, 3(1):22-31. DOI:10.1002/ame2.12098 . |
8 | ZHAO Y Q, XIANG L, LIU Y Q, et al. Atherosclerosis induced by a high-cholesterol and high-fat diet in the inbred strain of the Wuzhishan miniature pig[J]. Anim Biotechnol, 2018, 29(2):110-118. DOI:10.1080/10495398.2017.1322974 . |
9 | HUANG Q, XU H B, YU Z, et al. Inbred Chinese Wuzhishan (WZS) minipig model for soybean glycinin and beta-conglycinin allergy[J]. J Agric Food Chem, 2010, 58(8):5194-5198. DOI:10.1021/jf904536v . |
10 | LI X, HUANG Y, LIANG Q F, et al. Local immunosuppression in Wuzhishan pig to Rhesus monkey descemet's stripping automated endothelial keratoplasty: an innovative method to promote the survival of xenografts[J]. Ophthalmic Res, 2022, 65(2):196-209. DOI:10.1159/000521193 . |
11 | 韦习会, 王林云, 徐银学, 等. 五指山猪白细胞抗原血清学研究[J]. 畜牧兽医学报, 1996(3): 199-206. |
WEI X H, WANG L Y, XU Y X, et al. Preliminary serological study on swine lymphocyte antigen(sla)of the Wuzhishan pig[J]. Acta Vet Zootechnica Sin, 1996(3): 199-206. | |
12 | 孙俊丽. 五指山猪近交系群体三个白细胞抗原基因序列和功能分析[D]. 咸阳: 西北农林科技大学, 2005. |
SUN J L. Analysis of sequence and its function on three swine leutocyte antigen gene in inbreeding line of wuzhishan pig population[D]. Xianyang: Northwest Agriculture and Forestry University, 2005. | |
13 | RABIN M, FRIES R, SINGER D, et al. Assignment of the porcine major histocompatibility complex to chromosome 7 by in situ hybridization[J]. Cytogenet Cell Genet, 1985, 39(3):206-209. DOI:10.1159/000132136 . |
14 | BARBOSA A, DEMEURE O, URIEN C, et al. A physical map of large segments of pig chromosome 7q11-q14: comparative analysis with human chromosome 6p21[J]. Mamm Genome, 2004, 15(12):982-995. DOI:10.1007/s00335-004-3008-6 . |
15 | HAMMER S E, HO C S, ANDO A, et al. Importance of the major histocompatibility complex (swine leukocyte antigen) in swine health and biomedical research[J]. Annu Rev Anim Biosci, 2020, 8:171-198. DOI:10.1146/annurev-animal-020518-115014 . |
16 | VAIMAN M, CHARDON P, ROTHSCHILD M F. Porcine major histocompatibility complex[J]. Rev Sci Tech, 1998, 17(1):95-107. DOI:10.20506/rst.17.1.1093 . |
17 | MERKENSCHLAGER J, EKSMOND U, DANELLI L, et al. MHC class II cell-autonomously regulates self-renewal and differentiation of normal and malignant B cells[J]. Blood, 2019, 133(10):1108-1118. DOI:10.1182/blood-2018-11-885467 . |
18 | CHARDON P, RENARD C, VAIMAN M. The major histocompatibility complex in swine[J]. Immunol Rev, 1999, 167:179-192. DOI:10.1111/j.1600-065x.1999.tb01391.x . |
19 | 刘丽霞. 三个猪种SLA-DQA和DRA基因分子遗传特征及其与仔猪腹泻的关联研究[D]. 兰州: 甘肃农业大学, 2015. |
LIU L X. Molecular genetic characteristics of SLA-DQA and DRA genes and their association with piglet diarrhea in three pig breeds[D]. Lanzhou: Gansu Agricultural University, 2015. | |
20 | VIRET C, JANEWAY C A Jr. MHC and T cell development[J]. Rev Immunogenet, 1999, 1(1):91-104. |
21 | 吴群, 熊平, 陈实, 等. 近交系海南五指山猪SLA经典I类和II类分子序列分析[J]. 现代免疫学, 2004(1):23-26. DOI: 10.3969/j.issn.1001-2478.2004.01.007 . |
WU Q, XIONG P, CHEN S, et al. Sequence analysis of classical swine leukocyte antigens (SLA) class I and class II molecules in inbred strain of Chinese Wuzhishan pigs[J]. Curr Immunol, 2004(1):23-26. DOI: 10.3969/j.issn.1001-2478.2004.01.007 . | |
22 | 常瑞刚, 舒丹, 刘丽霞. SLA-DRB基因多态性与仔猪腹泻的关联性研究进展[J]. 甘肃畜牧兽医, 2017, 47(6):20-21. DOI: 10.15979/j.cnki.cn62-1064/s.2017.06.002 . |
CHANG R G, SHU D, LIU L X. Research progress on the correlation between SLA-DRB gene polymorphism and piglet diarrhea[J]. Gansu Anim Husb Vet, 2017, 47(6):20-21. DOI: 10.15979/j.cnki.cn62-1064/s.2017.06.002 . | |
23 | 顾茂松. 五指山小型猪SLA-DQA基因的SNPs及猪人MHC Ⅰ类区自然杀伤细胞KIRs结合区氨基酸变异的比较分析[D]. 武汉: 华中农业大学, 2005. |
GU M S. Single nucleotide polymorphism of SLA-DQA gene in wuzhishan miniature pigs and comparision of amino acids variability of NK cell KIRs binding sites between swine and human MHC class Ⅰ region[D]. Wuhan: Huazhong Agricultural University, 2005. |
